Carbon Fiber color wraps

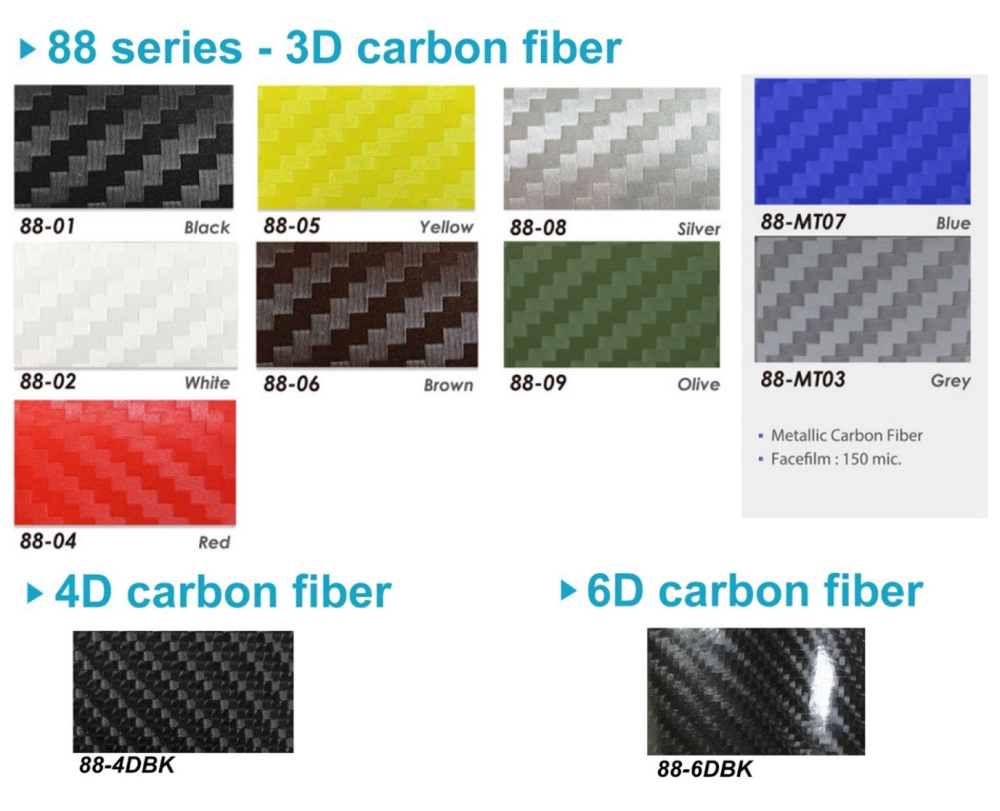

Graphictac offers carbon fiber color wraps in different prints, 3D is a twill weave in perpendicular/ cross patterns like a staircase with a matte finish, 4D is a circular weave in rounded/ spiraled pattern with a matte finish, and 6D is the same circular weave as 4D but with a glossy layer to give it the shiny.

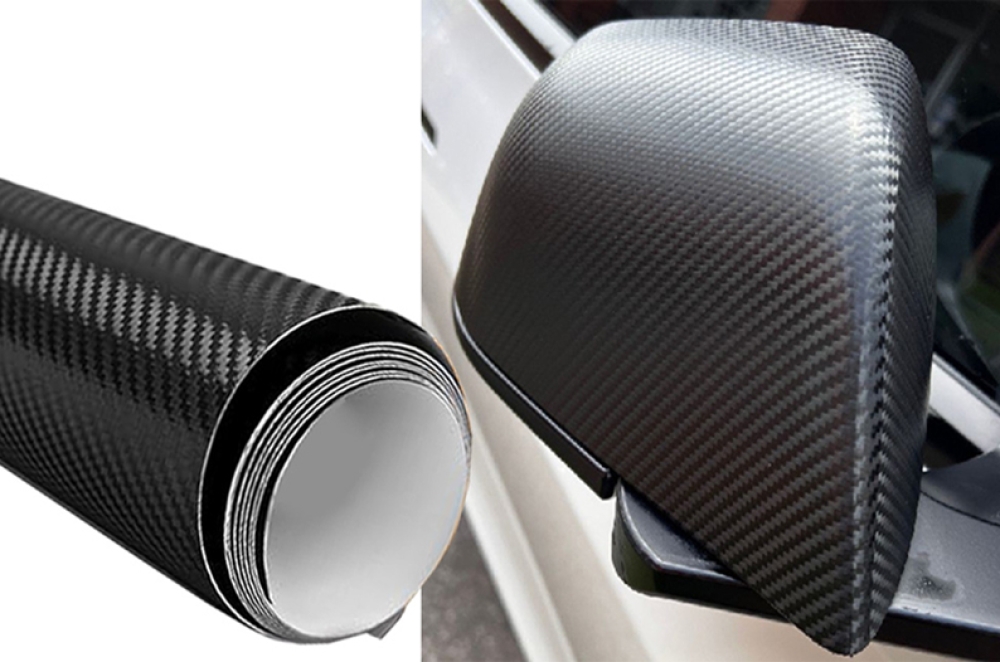

- Carbon fiber color wraps with excellent conformability and bubble free liner allowing quick and easy wrapping.
- 3D print is twill weave (perpendicular/ cross patterns like a staircase with a matte finish)
- 4D print is circular weave (rounded / spiraled pattern with a matte finish

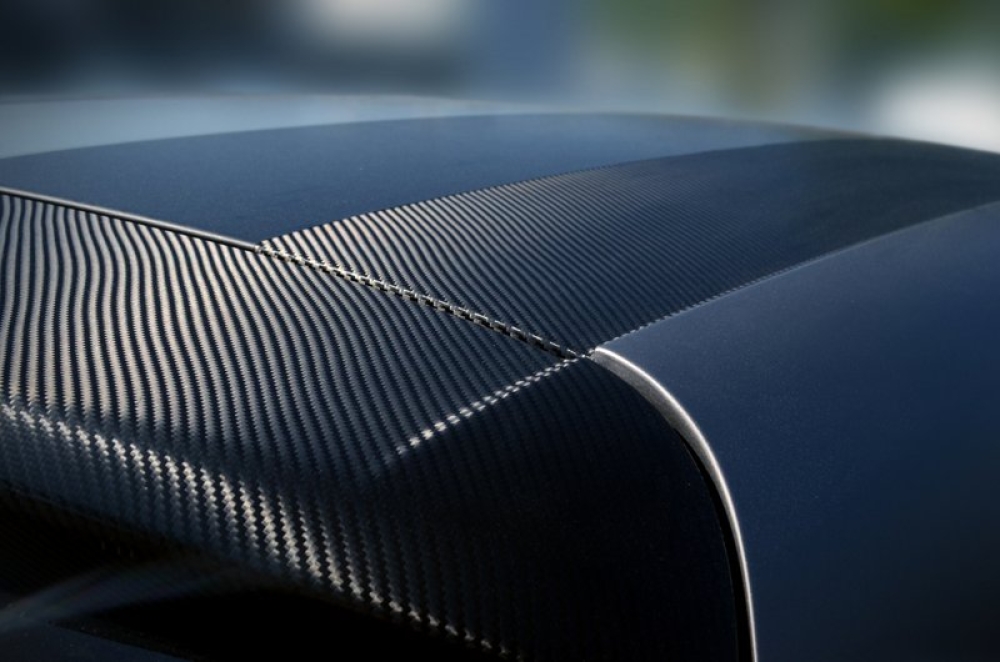

- 6D print is the same circular weave as 4D but with a glossy layer to give it the shiny. For 6D print, its ultra lustrous glossy finish and circular pattern is almost indistinguishable from real carbon fiber when installed.
- 3 years outdoor durability depending on application.
|
Product code/ Film thickness |
3D print in 6mil (150µm) ±5% |
|---|---|
|
Adhesive |
Clear acrylic permanent non-residue adhesive made in Taiwan. |
|
Release liner |
80gsm ±5% double-PE coated paper liner with air release. |
|
Printer compatibility |
N/A |
|
Durability |
Up to 3 years outdoor depending on exposure angle and climate condition |
|
Roll width |
60" (=1,520mm) |
|
Roll length |
164' (=50 meters) or custom length upon |
